Geckolighting® LED Downlights

These high power LED downlights are an ideal option for those wishing to reduce power usage and reduce heat. Optimum lighting results can be acheived with the range of LED downlights from Geckolighting®.Below is a selection of the most popular LED downlights currently available from Geckolighting®.

	Cutout size	Power	Lumens (Lm)	Diameter (mm)	Depth (mm)	Adjustable Head	Colour (k)	Data Sheet PDF

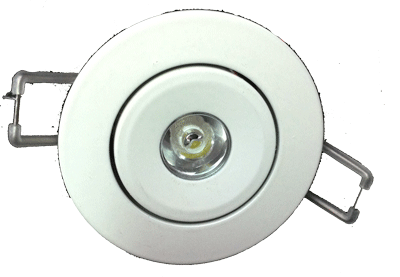

Geckolighting® LED Mini Downlights. *Requires DC12V input
	42mm	1w	120	52	21	Yes	6000 3000	Data Sheet:...
	55mm	3w	300	67	47	No	6000 3000	Data Sheet:....
Geckolighting® LED CCT selectable Downlights. *CW/NW/WW selectable via switch on back
	90-95mm	10W	1000	108	72	CCT selectable	6000 3000	Data Sheet...
	90-95mm	10W	1000	108	72	CCT selectable	6500 4500 3000	Data Sheet...
	Cut-out size	Power	Lumens (Lm)	Diameter (mm)	Depth (mm)	Adjustable Head	Colour (k)	Data Sheet PDF
Geckolighting® LED Downlights - Commercial range. * 6000K standard, other CCT available.
	140mm	12w	1200	165	53	No	6000	Data Sheet:....
	165mm	15w	1500	188	55	No	6000	Data Sheet:....
	200mm	20w	2000	218	55	No	6000	Data Sheet:....
	195mm	30w	2835	230	80	No	6000	Data Sheet:....

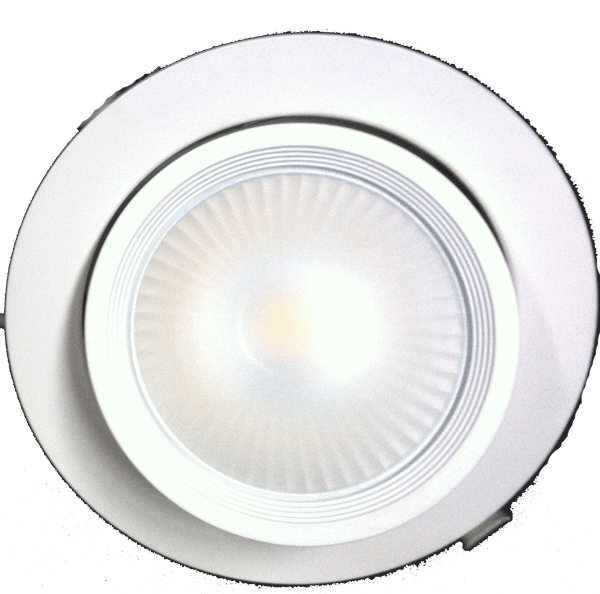

Geckolighting® LED Head Angle Adjustable Downlights
	110mm	10W	1000	125	90	Yes	6000 2700	Data Sheet.....
	180mm	25W	2280	185	70	Yes	6000 3000	Data Sheet:....

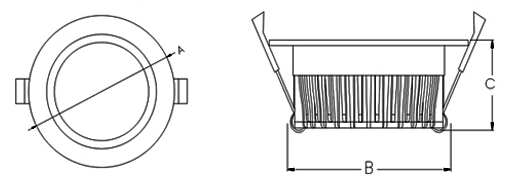

Dimensions - Quick Model Comparison.

drw042

	A	B	C
Model	Diameter	Cutout	Depth
1w	52	42	21
1w	67	55	23
3w	67	55	50
9w	130	106	50
12w	165	140	53
15w	188	165	55
20w	218	200	55
30w	230	195	80
10w adjustable head angle	125	110	90
25w adjustable head angle	185	180	170
10w 2 CCT switchable CW/WW	108	90-95	72
10w 3 CCT switchable CW/NW/WW	115	90-95	61
